577102B00000G
Manufacturer:
Aavid Thermalloy
Mfr.Part #:
577102B00000G
Datasheet:
Description:

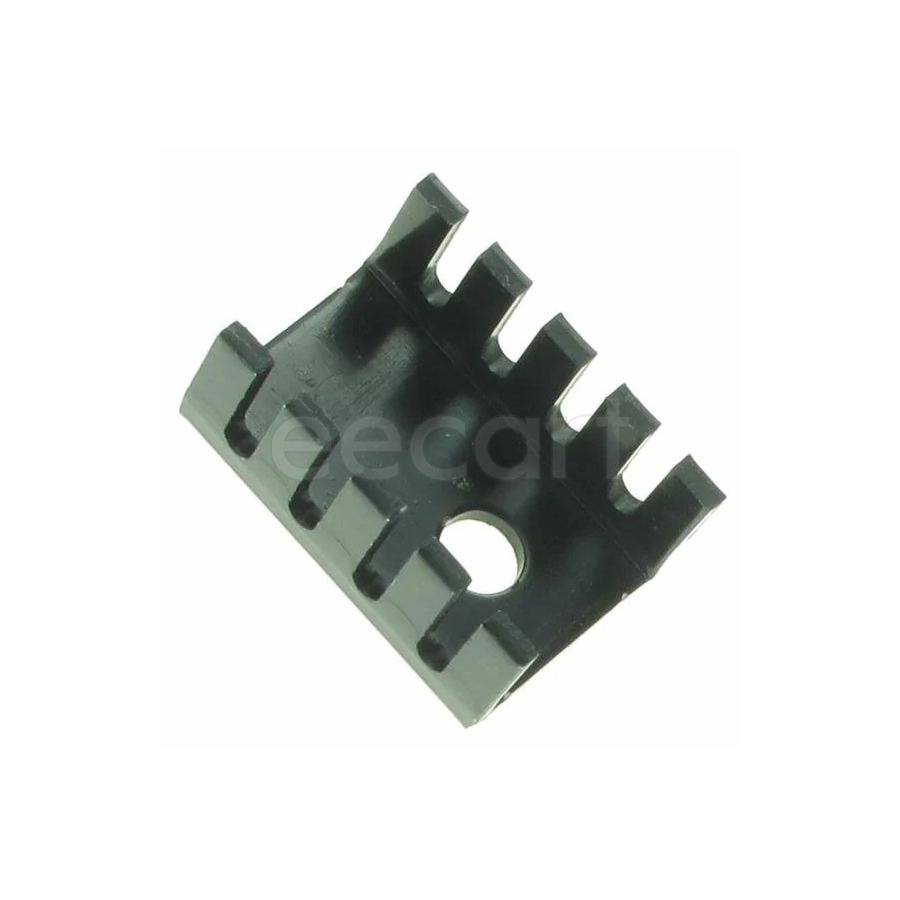

Heat Sinks Through Hole Passive Height:9.652 mm Length:13.21 mm Width:13.208 mm Aluminium, Anodized
| Parameter | Value |
|---|---|
| Length | 13.21 mm |
| Width | 13.208 mm |
| Height | 9.652 mm |
| Material | Aluminium, Anodized |
| Packaging | Bulk |
| Depth | 9.52 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 113.398093 g |
| Type | Passive |
| Color | Black |
| Shape | Fins, Rectangular |
| Natural Thermal Resistance | 25.9 °C/W |
| Schedule B | 8542900000 |
| Thermal Resistance @ Forced Air Flow (100 LFM) | 12 °C/W |
| Package Cooled | TO-220 |
| Height Off Base | 9.525 mm |
| Connection Method | Bolt On |
| Fin Style | Channel Cut Fin |
| Power Dissipation | 3 W |
Stock: 3280
Distributors
pcbx
pcbxUnit Price$0.62581
Ext.Price$0.62581
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.62581 | $0.62581 |
| 10 | $0.55229 | $5.52290 |
| 25 | $0.52150 | $13.03750 |
| 50 | $0.50783 | $25.39150 |
| 100 | $0.48902 | $48.90200 |
| 300 | $0.46895 | $140.68500 |
| 500 | $0.44970 | $224.85000 |
| 1000 | $0.43345 | $433.45000 |
| 3000 | $0.41466 | $1243.98000 |
| 5000 | $0.39669 | $1983.45000 |
